The skybell digital doorbell adapter is required for all digital doorbell chimes to work with skybell.

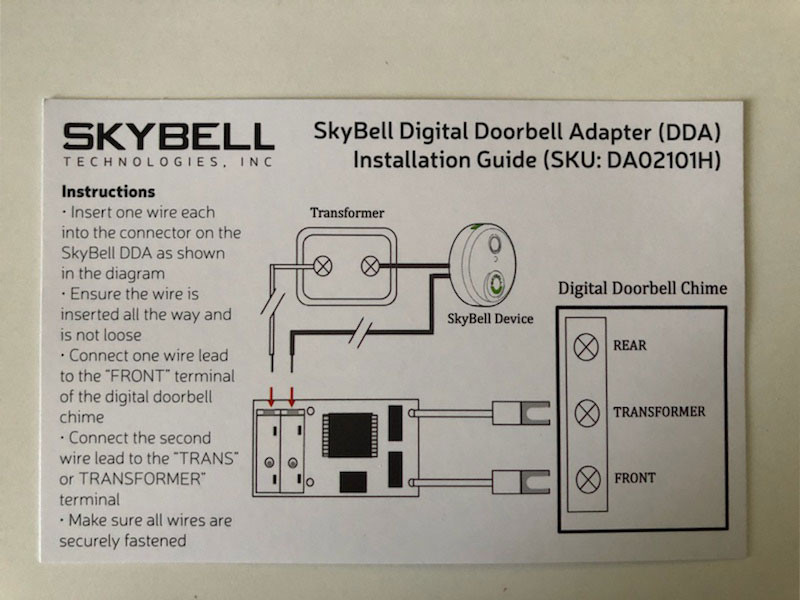

Skybell digital doorbell adapter wiring diagram. The skybell requires 10 36 vac volts alternating current 10 va volts ampere and 0 5a to 1 0a ampere in order to operate. The skybell digital doorbell adapter will make a digital door chime compatible with skybell hd skybell trim plus or skybell slim line. The adapter installation is very simple taking only a few minutes to complete. We recommend you install skybell with a low voltage transformer and a wired analog doorbell chime.

Mechanical chimes have two plungers and go ding dong where as digital chimes play different tunes and tend to have speakers see the next section for installation when using a digital chime. The skybell dda installs inside of an indoor digital doorbell chime by connecting the wires to the terminals used for front representing the front doorbell and trans representing the transformer which is used for regulating low voltage power of wired indoor digital chime systems. Installation instructions are provided on the installation card enclosed with. Transformer with doorbell chime this is the recommended setup for skybell.

Wiring the skybell with a mechanical chime. Transformer setup no doorbell chime this setup requires a 10 ohm 10 watt resistor. Skybell hd now functions properly although i would never recommend it due to customer service lack of customer support but if you own one already and can t get it to function properly with a digital door chime this is the adapter you need. The diagram below shows how the skybell dda.

You must go into app settings after and turn on digital doorbell for it to work properly.
