Door lock wiring guide the light blue h1 8 and light green h1 7 lock wires provide 200ma negative pulses that are used to control electric door locks.

Avital 2101l wiring diagram. The wiring diagram on the opposite hand is particularly beneficial to an outside electrician. Any attempt to install this product by any person other than a trained professional may result in severe damage to a vehicle s electrical system and components. Most common interfaces are described in this section. This product is intended for installation by a professional installer only.

Model 2101l installation guide note. Avital keyless entry system add keyless entry easily with two remotes. Any attempt to install this product by any person other than a trained professional may result in severe damage to a vehicle s electrical system and components. This product is intended for installation by a professional installer only.

Wiring diagram for avital 2101l avital 2101l keyless entry system question. The wires on each activator are split off into two connectors. Wiring wiring diagram avital alarm wiring diagram avital alarm o avital l alarm install issue remote start triggering o gallery avital installation diagram awesome alarm system wiring o avital alarm wiring diagram inspirationa auto o i have an old avital car alarm my battery died thi summer o avital. Summary of contents for avital 2101l page 1 model 2101l installation guide note.

Wiring diagram 5x05 remote start 10 pin harness main 5 pin harness door lock 3 pin harness light flash polarity jumper onboard thermistor temp sensor aux shutdown trigger 24 pin harness rf port control center bitwriter directed smartstart port doubleguard shock sensor port d2d port for external directed interface module. 12v pulses from the switch to the factory relays the correct wires can usually be found in either kick panel. Avital warranty nationwide service if you have an issue with your avital system call our toll free number anytime even when traveling. A two wire connector for the red and blue on the main harness and a three wire connector for the brown purple and black.

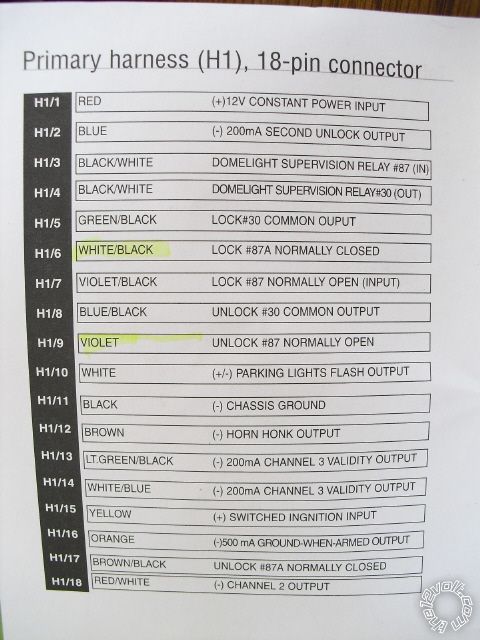

Wiring diagram control button valet switch door lock unlock harness side view antenna antenna led programming indicator parking light jumpers primary harness remote start harness heavy gauge relay side view satellite harness red 4 pin port bitwriter esp2 or d2d 4x03 wiring connections main harness h1 9 pin connector h1 1 light green black. Sometimes wiring diagram may also refer to the architectural wiring program.
